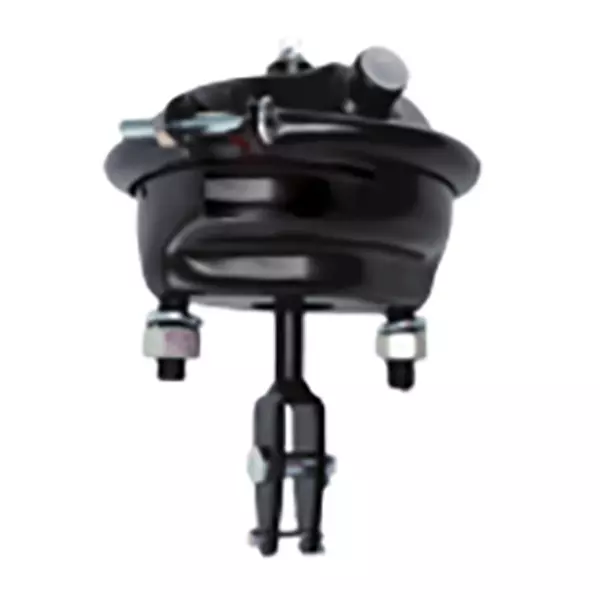

T30L Yoke Welded Service Brake Chamber
| Actuator Type Size | T30L |
| Type | Yoke Welded Service Brake Chamber |
| Material | Steel |
Description
T30L Yoke Welded Service Brake Chamber
T30 Yoke Welded Service Brake Chamber
| Type | Stroke | A | M | P | D | d | W | L1 | L2 | L3 | L4 | B & Z |
| T30L | 76 | 120.7 | 5/8″-11UNC 2A/M16x1.5 |
3/8″-11UNC 2A/M16x1.5 |
Φ12.5 | Φ6 | 14.5 | Length can be adjusted | 33 | 28.3 | 38 | Angle canbe adjusted |
Rated Working Pressure: 0.8MPa
Maximum Operating Pressure: 1.0MPa
Operating Temperature Range: -40℃ ～ +80℃
- A= Stud Spacing
- B= Service Clampband position
- L1= Pushrod Length from face of Service Housing
- Z= Air Port position
